Sensor Xtra

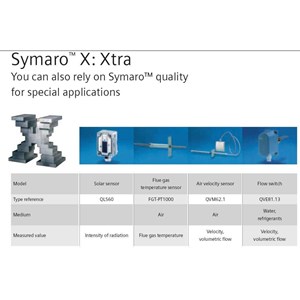

Symaro X: Xtra You can also rely on Symaro quality for special applications Solar sensor QLS60 For acquiring the intensity of solar radiation Output signal DC 010 V 420 mA Measuring range 01000 W/m2 Time constant 2 s Electrical connection 3-wire Degree of protection IP65 Flue gas temperature sensor FGT-PT1000 For acquiring the flue gas temperature in stacks. Operating range -20 + 400 C Sensing element PT1000 (IEC751, class B) Connecting cable 2-wire, 1.5 m Material of cable Teflon, with wire mesh Material of sleeve stainless steel V4A (1.4571) Duct sensor QVM62.1 for air velocity For acquiring the air velocity or the volumetric flow in air ducts. Suited for primary air handling plant (presetting of volumetric flow). Output signal DC 010 V Measuring range (adjustable) 05 m/s 010 m/s 015 m/s Degree of protection IP42 Detached sensor, comes ready wired, including extension tube for different immersion lengths and mounting flange. Flow switch QVE81.13 for installation in hydraulic systems For monitoring systems that contain liquids or gases. Output potential-free Switching capacity 15(8) A, AC 24250 V Nominal size of pipe 18 in. Threaded connection R 1 in. Medium temperature -40+120 C Material of insert brass Degree of protection IP65 The switching point of the N.O. / N.C. contact can be adjusted with a tolerance of 10 %.
